Cisco ACI Multi-Pod (Pt.1) – IPN (Inter-Pod Network) Configuration & Verification
Inter-Pod Network (IPN) Topology
This post is the first in a three part (part two here) series on configuring Cisco ACI MultiPod and is based upon experiences from a number of multi-pod deployments and the inforssmmation provided is from a live deployment with anonymity changes of course, this is one post of a 3 post series about configuring Cisco ACI MultiPod. The hardware in this deployment consists of Cisco Nexus C9236C switches with NXOS: version 7.0(3)I5(2), using 40G (QSFP-40G-SR-BD) links between the IPN devices and the spine switches and 10G links between the IPN devices using a breakout cable from the QSFP-40G-SR4 optic installed in the IPN devices.
The spine switches are Cisco N9K-C9336PQ spine switches on firmware n9000-13.0(1k) using QSFP-40G-SR-BD optics towards the IPN devices. The APIC firmware version is 3.0(1k).

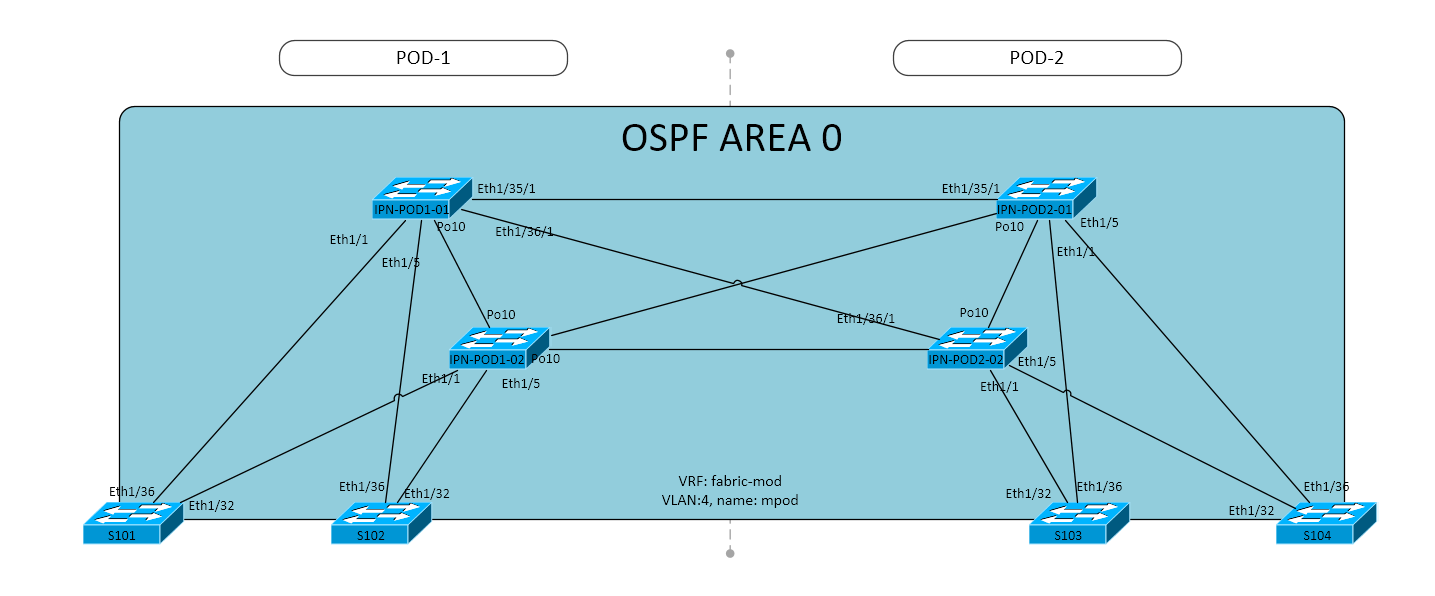

The following diagram depicts the design of the IPN connectivity showing only the relevant devices for IPN, all other spine and all leaf switches are not shown for brevity.
In this deployment, POD-1 and POD-2 happen to be in geographically diverse data centers where the four inter-connecting WAN links are 10Gbps Ethernet each although the POD’s could be in different campus locations or on different floors in a data center.
IPN L2
The only IPN requirements at layer 2 are to use VLAN 4 and increase the MTU. The VLAN requirement is for 802.1q between the spine and the IPN devices and to use encapsulation dot1q 4 on these sub-interfaces, additionally the system and L3 interface MTU must be set to 9150 as follows.
Код: Выделить всё
!
system jumbomtu 9150
!
interface Ethernetx...
desc any interface carrying IPN traffic
mtu 9150IPN L3
VRF
We have VRF’s configured on this deployment and this is also a recommended configuration by Cisco though not technically required but is good practice as we want to isolate the IPN traffic from interruption certainly if the IPN devices are used for other services and route table changes could break IPN connectivity. Using VRFs requires all interfaces (or sub-interfaces) including dedicated IPN loopbacks to be in the VRF as well as a separate OSPF process in that VRF. The PIM RP address will be configured in the VRF too and is discussed in the multicast section in this post. The VRF in this deployment is called ‘fabric-mpod’, this VRF is not configured in the APIC, it only exists on the IPN devices encompassing VLAN 4.
Код: Выделить всё
vrf context fabric-mpod
!
interface loopback yy
vrf member fabric-mpod
!
interface Ethernetx...
vrf member fabric-mpod
!
router ospf a1
vrf fabric-mpodAddressing
IP addressing for the WAN and IPN POD to Spine has been taken from a RFC 1918 range, the allocated range has been split in to three class C networks (/24), one each for;
POD-A IPN [10.96.1.0/24]
POD-B IPN [10.96.2.0/24]
WAN Interconnects [10.96.255.0/24]
Within the ACI fabric the IPN uses tenant ‘infra’ and VRF ‘overlay-1’ (translates to the VRF on the IPN devices ‘fabric-mpod’ – you could call the IPN devices VRF ‘overlay-1’ to keep it consistent but I don’t think its very descriptive). The address ranges used should not conflict with any other addressing in the ‘overlay-1’ VRF. The IPN devices have loopback created using host addresses from the start of the allocated pool for the POD they are located in. The loopback addresses on the spine switches are configured via the OSPF configuration on the APIC. Interconnects between the IPN devices and IPN & spine switches are allocated /30 addresses starting at the end of the allocated pool and work backwards for each allocation.
Routing
OSPF is used on the IPN between the connected spine switches and IPN devices, also between the IPN devices in all pods. The diagram below shows area 0 being used across the IPN and spine devices. Other OSPF areas can be used but they MUST be configured as ‘normal’ areas, in other words do not configure them as stub or NSSA areas for example.
The links (interfaces) between the IPN devices and the spine switches must have the following OSPF configuration on the interfaces (as discussed, these are actually the sub-interfaces for VLAN-4).
Код: Выделить всё
ip ospf network point-to-point
ip ospf mtu-ignore
ip router ospf a1 area 0.0.0.0As shown in the code snippet, the network type between the IPN device and the spin device must be point to point and ignore MTU must be turned on. These settings are important for these links, for the IPN to IPN links, these can be configured with a network type that is relevant to the … network type ! – this is just normal OSPF configuration here with the above caveats with area type. In addition a dedicated loopback is used for the VRF and the PIM RP. Each IPN device must have this dedicated loopback active in the same OSPF area as the links. The following config shows the loopbacks for a IPN device acting as a primary RP.
Код: Выделить всё
interface loopback96
vrf member fabric-mpod
ip address 10.96.1.1/32
ip router ospf a1 area 0.0.0.0
ip pim sparse-modeКод: Выделить всё
interface loopback100
desc Dedicated RP Loopback
vrf member fabric-mpod
ip address 10.96.1.233/32
ip router ospf a1 area 0.0.0.0
ip pim sparse-modeMulticast
Cisco ACI requires\recommends (works best with) bi-dir multicast as we have many sources and many receivers. Referring to the diagram above, all the links require ‘ip pim sparse-mode‘ configured including the dedicated loopback(s). The VRF itself requires the RP configured for the group 225.0.0/8 which is used by the bridge domains for BUM traffic (discussed in the next section). The 239.255.255.240/28 is used for fabric specific purposes, for example the 239.255.255.240/32 address is used for arp gleaning. The configuration for the RP on a IPN device is shown below, the RP IP address being the IP address on the dedicated loopback in the multi pod VRF.
Код: Выделить всё
ip pim mtu 9000
vrf context fabric-mpod
ip pim rp-address 10.96.1.233 group-list 225.0.0.0/8 bidir
ip pim rp-address 10.96.1.233 group-list 239.255.255.240/28 bidirWhat is important to note is that bi-dir has no native solution for redundancy. To implement redundancy we create use the concept of Redundant Phantom Rendezvous Points, we use the single IP address for the RP configuration on each of the IPN devices as shown above. This configuration is discussed later in this post.
Cisco ACI uses a multicast address per bridge domain to encapsulate BUM traffic to be sent to other TEPs (Leaf Switches) across the fabric. This concept is extended over the IPN for multi pod deployments. If we take a look at an example bridge domain on the APIC which is active in both pods, we see on the “Advanced/Troubleshooting” tab that we have a system assigned multicast address of 225.0.13.224/32 which is unique to this bridge domain.
If we want to quickly get a list of all the bridge domains and the assigned multicast addresses, from the APIC CLI use the following command;
Код: Выделить всё
moquery -c fvBD | grep 'name\|bcastP'The spine switches do not support PIM, they use IGMP joins to the connected L3 IPN devices as a host or L2 switch would. This is important to note as you need to be sure your IPN design does not have IPN devices forwarding PIM joins to the RP through the spine switches. As the spine switches do not run PIM they will drop the PIM requests and break multicast. An example of this design issue is where redundant IPN devices are used in both PODs and the local IPN devices connected to the spine switches do not have a PIM enabled path between them locally or towards the RP. It is possible to fix this with OSPF costs but you would have hair-pinning of PIM joins and multicast data over your WAN – not very efficient ! The following diagram explains the issue.
The preceding design shows the problem in that there are no links and/or local PIM enabled paths between the local IPN devices. This causes multicast to break. When POD-1 S102 sends an IGMP Join to IPN-POD1-02, IPN-POD1-02 converts this to a PIM Join and sends to its configured RP (IPN-POD1-01). IPN-POD1-02 looks in its route table and finds the best way is via POD-1 S101 spine switch, it sends the PIM join towards the S101 switch. When the S101 switch receives this PIM Join it drops it because the spine switches only run IGMP not PIM. (All OSPF interface costs are default, IPN WAN are 10G, IPN-SPINE are 40G links)
The IPN-POD1-02 device is not informed of the PIM drop by the spine switch and therefore installs multicast routes in the mroute table to send and receive multicast packets for the (*,G) over the link to S101. No multicast traffic will be received over the S101->IPN-POD1-02 link as the IGMP join on the IPN device is from spine S102. This could be solved by changing OSPF costs but the same issue would occur during certain failure scenarios or traffic would hairpin through POD-2.
Examples of ARPs from Host-A for Host-B, the multicast encapsulated ARP would get as far as S101 (S102>>IPN-POD1-02>>S102) and be dropped by S102. For ARPs from Host-B for Host-A, the multicast encapsulated ARP would be sent from POD-2 from S104>>IPN-POD2-01>>IPN-POD1-01[RP] which is correct, but there are no PIM joins on this path from POD-1 as they were dropped at S101.
Validation
We should have the APIC configured with multipod and a L3Out which enables the spine interfaces configured to actively sending IGMP joins for bridge domain multicast addresses. So to validate the operation lets check to see we have the expected IGMP Joins from the spine switches to the directly connected IXN devices. We will look for a particular join on 225.0.13.224 as we saw in the APIC bridge domain (shown previously) advanced section of the GUI. The ACI fabric will only send one join in each POD for each multicast address so look on all directly connected IXN devices to spines.
Cisco CCO document states the selection of the spine node and link to send the IGMP as;
“For each Bridge Domain, one spine node is elected as the authoritative device to perform both functions described above (the IS-IS control plane between the spines is used to perform this election). the elected spine will select a specific physical link connecting to the IPN devices to be used to send out the IGMP join (hence to receive multicast traffic originated by a remote leaf) and for forwarding multicast traffic originated inside the local Pod.”
Looking at the output from the POD-1 & POD-2 spine devices on vlan-4 which is the vlan used by multi-pod on the fabric.
In POD-1 we find the IGMP Join from S102 to IPN-POD1-02 device
In POD-2 we find the IGMP Join from S104 to IPN-POD2-01 device
Spine switches S101 & S102 are in POD-1 and S103 & S104 are in POD-2 as shown in the first diagram in this post. We can validate the device the join is sent to by looking at the outbound interface and checking against the diagram and/or as shown in the next section where we will be looking at the IPN devices IGMP Joins received.
Spine Switch IGMP Join
Код: Выделить всё
S101# show ip igmp gipo joins
GIPo list as read from IGMP-IF group-linked list
------------------------------------------------
GIPo Addr Source Addr Join/Leave Interface Iod Enable/Disable
225.0.59.64 0.0.0.0 Join Eth1/36.42 76 Enabled
225.0.238.32 0.0.0.0 Join Eth1/36.42 76 Enabled
239.255.255.240 0.0.0.0 Join Eth1/36.42 76 EnabledКод: Выделить всё
S102# show ip igmp gipo joins
GIPo list as read from IGMP-IF group-linked list
------------------------------------------------
GIPo Addr Source Addr Join/Leave Interface Iod Enable/Disable
225.0.0.0 0.0.0.0 Join Eth1/36.43 76 Enabled
225.0.87.176 0.0.0.0 Join Eth1/36.43 76 Enabled
225.0.156.48 0.0.0.0 Join Eth1/36.43 76 Enabled
225.0.174.32 0.0.0.0 Join Eth1/36.43 76 Enabled
225.1.34.64 0.0.0.0 Join Eth1/36.43 76 Enabled
225.1.142.160 0.0.0.0 Join Eth1/36.43 76 Enabled
225.0.13.224 0.0.0.0 Join Eth1/32.32 72 Enabled
225.0.149.0 0.0.0.0 Join Eth1/32.32 72 Enabled
225.1.60.208 0.0.0.0 Join Eth1/32.32 72 EnabledКод: Выделить всё
S103# show ip igmp gipo join
GIPo list as read from IGMP-IF group-linked list
------------------------------------------------
GIPo Addr Source Addr Join/Leave Interface Iod Enable/Disable
225.0.0.0 0.0.0.0 Join Eth1/32.47 72 Enabled
225.0.59.64 0.0.0.0 Join Eth1/32.47 72 Enabled
225.1.142.160 0.0.0.0 Join Eth1/32.47 72 Enabled
239.255.255.240 0.0.0.0 Join Eth1/32.47 72 EnabledКод: Выделить всё
S104# show ip igmp gipo joins
GIPo list as read from IGMP-IF group-linked list
------------------------------------------------
GIPo Addr Source Addr Join/Leave Interface Iod Enable/Disable
225.0.87.176 0.0.0.0 Join Eth1/32.32 72 Enabled
225.0.156.48 0.0.0.0 Join Eth1/32.32 72 Enabled
225.0.174.32 0.0.0.0 Join Eth1/32.32 72 Enabled
225.0.238.32 0.0.0.0 Join Eth1/32.32 72 Enabled
225.1.34.64 0.0.0.0 Join Eth1/32.32 72 Enabled
225.0.13.224 0.0.0.0 Join Eth1/36.47 76 Enabled
225.0.149.0 0.0.0.0 Join Eth1/36.47 76 Enabled
225.1.60.208 0.0.0.0 Join Eth1/36.47 76 EnabledNow we have confirmed there are IGMP Joins being sent towards the IPN devices from the ACI fabric spine switches, we check each directly connected IPN device for IGMP joins. The following output is from each of the directly connected IPN devices. Again we can check any bridge domain multicast address. In this case we are looking for 225.0.13.224, this should be present on one of each of the IPN devices in each connected POD. We see (as we expected) that IPN-POD1-02 has an IGMP join from the fabric spine 102 and IPN-POD2-01 has an IGMP join from fabric spine 104 in POD2. Notice we have IGMP joins across all switches and IPN connected interfaces in each POD showing some type of load sharing. We can check the source of the IGMP Join from the received interface and/or the Last Reporter in the output being the spine l3 interface address.
Код: Выделить всё
IPN-POD1-01# sh ip igmp groups vrf fabric-mpod
IGMP Connected Group Membership for VRF "fabric-mpod" - 9 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.0.0.0 D Ethernet1/5.4 1w4d 00:02:27 10.96.1.250
225.0.59.64 D Ethernet1/1.4 3d05h 00:03:37 10.96.1.254
225.0.87.176 D Ethernet1/5.4 1d08h 00:02:26 10.96.1.250
225.0.156.48 D Ethernet1/5.4 3d00h 00:02:27 10.96.1.250
225.0.174.32 D Ethernet1/5.4 1d08h 00:02:26 10.96.1.250
225.0.238.32 D Ethernet1/1.4 3d05h 00:03:37 10.96.1.254
225.1.34.64 D Ethernet1/5.4 3d05h 00:02:27 10.96.1.250
225.1.142.160 D Ethernet1/5.4 3d05h 00:02:27 10.96.1.250
239.255.255.240 D Ethernet1/1.4 1w4d 00:03:37 10.96.1.254Код: Выделить всё
IPN-POD1-02# sh ip igmp groups vrf fabric-mpod
IGMP Connected Group Membership for VRF "fabric-mpod" - 3 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.0.13.224 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242
225.0.149.0 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242
225.1.60.208 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242Код: Выделить всё
IPN-POD2-01# sh ip igmp groups vrf fabric-mpod
IGMP Connected Group Membership for VRF "fabric-mpod" - 3 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.0.13.224 D Ethernet1/5.4 04:27:15 00:03:23 10.96.2.250
225.0.149.0 D Ethernet1/5.4 04:27:14 00:03:23 10.96.2.250
225.1.60.208 D Ethernet1/5.4 04:27:13 00:03:22 10.96.2.250Код: Выделить всё
IPN-POD2-02# sh ip igmp gr vrf fabric-mpod
IGMP Connected Group Membership for VRF "fabric-mpod" - 9 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.0.0.0 D Ethernet1/1.4 04:10:29 00:04:16 10.96.2.242
225.0.59.64 D Ethernet1/1.4 04:10:29 00:04:16 10.96.2.242
225.0.87.176 D Ethernet1/5.4 04:10:29 00:02:49 10.96.2.246
225.0.156.48 D Ethernet1/5.4 04:10:29 00:02:49 10.96.2.246
225.0.174.32 D Ethernet1/5.4 04:10:29 00:02:49 10.96.2.246
225.0.238.32 D Ethernet1/5.4 04:10:29 00:02:48 10.96.2.246
225.1.34.64 D Ethernet1/5.4 04:10:29 00:02:49 10.96.2.246
225.1.142.160 D Ethernet1/1.4 04:10:29 00:04:16 10.96.2.242
239.255.255.240 D Ethernet1/1.4 04:10:29 00:04:16 10.96.2.242Now we have verified IGMP we can move on to validating PIM from the IPN devices receiving the IGMP Join. These devices will ‘convert’ the IGMP Join to a PIM Join and send to the configured RP hop by hop using the unicast routing table. Each router along the path will register the join and create a (*,G) in the multicast route table to send any multicast packet received by this router out of the interface that the PIM Join has been received providing the multicast packet was not received on that same interface. Notice that on the IXN devices that received the IGMP Join you will see that the multicast route table has an outgoing interface where the IGMP Join was received labelled with IGMP in addition to other PIM incoming and outgoing interfaces.
The RP is IPN-POD1-01, the backup RP is IPN-POD1-02. Again look for the (S,G): (*, 225.0.13.224), you can use the network diagram as a reference and trace down the path to the RP and the paths back to the spines.
Output of the multicast route table on the IPN devices.
Код: Выделить всё
IPN-POD1-01# sh ip mroute vrf fabric-mpod
IP Multicast Routing Table for VRF "fabric-mpod"
(*, 225.0.0.0/8), bidir, uptime: 2w0d, pim ip
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 0)
(*, 225.0.0.0/32), bidir, uptime: 1w4d, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 225.0.13.224/32), bidir, uptime: 3d00h, pim ip
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:06:39, pim
Ethernet1/35/1, uptime: 04:24:49, pim
(*, 225.0.59.64/32), bidir, uptime: 3d05h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/1.4, uptime: 04:32:18, igmp
(*, 225.0.87.176/32), bidir, uptime: 3d05h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 225.0.149.0/32), bidir, uptime: 3d05h, pim ip
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:06:39, pim
Ethernet1/35/1, uptime: 04:24:49, pim
(*, 225.0.156.48/32), bidir, uptime: 3d00h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 225.0.174.32/32), bidir, uptime: 3d01h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 225.0.238.32/32), bidir, uptime: 3d05h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/1.4, uptime: 04:32:18, igmp
(*, 225.1.34.64/32), bidir, uptime: 3d05h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 225.1.60.208/32), bidir, uptime: 3d05h, pim ip
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:06:39, pim
Ethernet1/35/1, uptime: 04:24:48, pim
(*, 225.1.142.160/32), bidir, uptime: 3d05h, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/5.4, uptime: 04:32:18, igmp
(*, 232.0.0.0/8), uptime: 2w0d, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0, uptime: 2w0d
Outgoing interface list: (count: 0)
(*, 239.255.255.240/28), bidir, uptime: 2w0d, pim ip
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 0)
(*, 239.255.255.240/32), bidir, uptime: 1w4d, ip pim igmp
Incoming interface: loopback100, RPF nbr: 10.96.1.233, uptime: 04:32:18
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:06:58, pim
Ethernet1/1.4, uptime: 04:32:18, igmpКод: Выделить всё
IPN-POD1-02# sh ip igmp groups vrf fabric-mpod
IGMP Connected Group Membership for VRF "fabric-mpod" - 3 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.0.13.224 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242
225.0.149.0 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242
225.1.60.208 D Ethernet1/5.4 04:07:57 00:04:19 10.96.1.242Код: Выделить всё
IPN-POD1-02# sh ip mroute vrf fabric-mpod
IP Multicast Routing Table for VRF "fabric-mpod"
(*, 225.0.0.0/8), bidir, uptime: 04:13:27, pim ip
Incoming interface: port-channel10, RPF nbr: 10.96.1.237, uptime: 04:13:08
Outgoing interface list: (count: 1)
port-channel10, uptime: 04:13:08, pim, (RPF)
(*, 225.0.13.224/32), bidir, uptime: 04:08:24, igmp ip pim
Incoming interface: port-channel10, RPF nbr: 10.96.1.237, uptime: 04:08:24
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:08:24, pim, (RPF)
Ethernet1/5.4, uptime: 04:08:24, igmp
(*, 225.0.149.0/32), bidir, uptime: 04:08:24, igmp ip pim
Incoming interface: port-channel10, RPF nbr: 10.96.1.237, uptime: 04:08:24
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:08:24, pim, (RPF)
Ethernet1/5.4, uptime: 04:08:24, igmp
(*, 225.1.60.208/32), bidir, uptime: 04:08:24, igmp ip pim
Incoming interface: port-channel10, RPF nbr: 10.96.1.237, uptime: 04:08:24
Outgoing interface list: (count: 2)
port-channel10, uptime: 04:08:24, pim, (RPF)
Ethernet1/5.4, uptime: 04:08:24, igmp
(*, 232.0.0.0/8), uptime: 1w3d, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0, uptime: 1w3d
Outgoing interface list: (count: 0)
(*, 239.255.255.240/28), bidir, uptime: 04:13:27, pim ip
Incoming interface: port-channel10, RPF nbr: 10.96.1.237, uptime: 04:13:08
Outgoing interface list: (count: 1)
port-channel10, uptime: 04:13:08, pim, (RPF)Код: Выделить всё
IPN-POD2-01# sh ip mroute vrf fabric-mpod
IP Multicast Routing Table for VRF "fabric-mpod"
(*, 225.0.0.0/8), bidir, uptime: 04:27:28, pim ip
Incoming interface: Ethernet1/35/1, RPF nbr: 10.96.255.253, uptime: 04:27:28
Outgoing interface list: (count: 1)
Ethernet1/35/1, uptime: 04:27:28, pim, (RPF)
(*, 225.0.13.224/32), bidir, uptime: 04:27:28, igmp ip pim
Incoming interface: Ethernet1/35/1, RPF nbr: 10.96.255.253, uptime: 04:27:28
Outgoing interface list: (count: 2)
Ethernet1/35/1, uptime: 04:27:28, pim, (RPF)
Ethernet1/5.4, uptime: 04:27:28, igmp
(*, 225.0.149.0/32), bidir, uptime: 04:27:27, igmp ip pim
Incoming interface: Ethernet1/35/1, RPF nbr: 10.96.255.253, uptime: 04:27:27
Outgoing interface list: (count: 2)
Ethernet1/35/1, uptime: 04:27:27, pim, (RPF)
Ethernet1/5.4, uptime: 04:27:27, igmp
(*, 225.1.60.208/32), bidir, uptime: 04:27:26, igmp ip pim
Incoming interface: Ethernet1/35/1, RPF nbr: 10.96.255.253, uptime: 04:27:26
Outgoing interface list: (count: 2)
Ethernet1/35/1, uptime: 04:27:26, pim, (RPF)
Ethernet1/5.4, uptime: 04:27:26, igmp
(*, 232.0.0.0/8), uptime: 2w0d, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0, uptime: 2w0d
Outgoing interface list: (count: 0)
(*, 239.255.255.240/28), bidir, uptime: 04:27:26, pim ip
Incoming interface: Ethernet1/35/1, RPF nbr: 10.96.255.253, uptime: 04:27:26
Outgoing interface list: (count: 1)
Ethernet1/35/1, uptime: 04:27:26, pim, (RPF)Код: Выделить всё
IPN-POD2-02# sh ip mroute vrf fabric-mpod
IP Multicast Routing Table for VRF "fabric-mpod"
(*, 225.0.0.0/8), bidir, uptime: 04:13:00, pim ip
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:11:33
Outgoing interface list: (count: 1)
Ethernet1/36/1, uptime: 04:11:33, pim, (RPF)
(*, 225.0.0.0/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/1.4, uptime: 04:10:43, igmp
(*, 225.0.59.64/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/1.4, uptime: 04:10:43, igmp
(*, 225.0.87.176/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/5.4, uptime: 04:10:43, igmp
(*, 225.0.156.48/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/5.4, uptime: 04:10:43, igmp
(*, 225.0.174.32/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/5.4, uptime: 04:10:43, igmp
(*, 225.0.238.32/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/5.4, uptime: 04:10:43, igmp
(*, 225.1.34.64/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/5.4, uptime: 04:10:43, igmp
(*, 225.1.142.160/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/1.4, uptime: 04:10:43, igmp
(*, 232.0.0.0/8), uptime: 1w3d, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0, uptime: 1w3d
Outgoing interface list: (count: 0)
(*, 239.255.255.240/28), bidir, uptime: 04:13:00, pim ip
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:11:33
Outgoing interface list: (count: 1)
Ethernet1/36/1, uptime: 04:11:33, pim, (RPF)
(*, 239.255.255.240/32), bidir, uptime: 04:10:43, igmp ip pim
Incoming interface: Ethernet1/36/1, RPF nbr: 10.96.255.249, uptime: 04:10:43
Outgoing interface list: (count: 2)
Ethernet1/36/1, uptime: 04:10:43, pim, (RPF)
Ethernet1/1.4, uptime: 04:10:43, igmpUse the above IGMP & PIM commands to work hop by hop if you are having issues between pods to validate the IGMP to PIM and PIM to RP and back from RP towards the IGMP Join locations.
Configurations
The following configuration is stripped to the essentials for IPN, it shows IPN-POD1-01 but can be used for all IPN devices with the exception of loopback 100 where this is only required for devices acting as RP’s. IPN-POD1-02 has the back up RP task, this is achieved by configuring interface loopback 100 as in the configuration below but with a mask of /30 which includes the RP address configured on IPN-POD1-01 but has a host address of another IP in that network. PIM Bi-dir RP’s don’t hold state and therefore there is not really an RP, its about getting multicast traffic sent to a root device which using the multicast table sends the traffic back down the PIM tree. the /32 is a longer prefix so will be preferred and as the backup RP is not configured with a host address the same we don’t have to worry about host routes being installed in the backup RP routing table and causing multicast breaks due to local device host routes. DHCP relay needs to be configured or POD2 will not get DHCP addresses and it wont come up. It is important to note that the DHCP relay addresses are the APIC IP addresses and are the IP addresses on the interfaces in the VRF ‘overlay-1’ which is part of the infra address ranges configured during setup, NOT the ‘OOB’ interface addresses.
Код: Выделить всё
hostname IPN-POD1-01
feature ospf
feature pim
feature dhcp
feature lldp
system jumbomtu 9150
interface breakout module 1 port 35-36 map 10g-4x
ip pim mtu 9000
vlan 1
service dhcp
ip dhcp relay
no ipv6 dhcp relay
vrf context fabric-mpod
ip pim rp-address 10.96.1.233 group-list 225.0.0.0/8 bidir
ip pim rp-address 10.96.1.233 group-list 239.255.255.240/28 bidir
interface Ethernet1/1
description 40G link to POD1-SPINE-101(1/36)
mtu 9150
vrf member fabric-mpod
no shutdown
interface Ethernet1/1.4
description 40G link to POD1-SPINE-101(1/36)
mtu 9150
encapsulation dot1q 4
vrf member fabric-mpod
ip address 10.96.1.253/30
ip ospf network point-to-point
ip ospf mtu-ignore
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
ip dhcp relay address 10.101.0.1
ip dhcp relay address 10.101.0.2
no shutdown
interface Ethernet1/5
description 40G link to POD1-SPINE-102(1/36)
mtu 9150
vrf member fabric-mpod
no shutdown
interface Ethernet1/5.4
description 40G link POD1-SPINE-102(1/36)
mtu 9150
encapsulation dot1q 4
vrf member fabric-mpod
ip address 10.96.1.249/30
ip ospf network point-to-point
ip ospf mtu-ignore
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
ip dhcp relay address 10.101.0.1
ip dhcp relay address 10.101.0.2
no shutdown
interface Ethernet1/27
description EtherChannel to IPN-POD1-02
mtu 9150
channel-group 10
no shutdown
interface Ethernet1/28
description EtherChannel to IPN-POD1-02
mtu 9150
channel-group 10
no shutdown
interface Ethernet1/35/1
description 10G Link (WAN) to IPN-POD2-01(1/35/1)
speed 10000
duplex full
mtu 9150
vrf member fabric-mpod
ip address 10.96.255.253/30
ip ospf network point-to-point
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
no shutdown
interface Ethernet1/36/1
description 10G Link (WAN) to IPN-POD2-02(1/36/1)
speed 10000
duplex full
mtu 9150
vrf member fabric-mpod
ip address 10.96.255.249/30
ip ospf network point-to-point
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
no shutdown
interface loopback96
vrf member fabric-mpod
ip address 10.96.1.1/32
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
interface loopback100
vrf member fabric-mpod
ip address 10.96.1.233/32
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
interface Port-channel10
description EtherChannel to IPN-POD1-02
mtu 9150
vrf member fabric-mpod
ip address 100.96.1.237/30
ip ospf network point-to-point
ip router ospf a1 area 0.0.0.0
ip pim sparse-mode
router ospf a1
vrf fabric-mpod
router-id 10.96.1.1
log-adjacency-changes detailScaling Numbers
From CCO as of APIC v3.0(1k);
-
Maximum number of Pods: 12 in v3.0(1)
-
Maximum number of Leaf nodes across all Pods: 300 (when deploying a 5 node APIC cluster)
-
Maximum number of Leaf nodes across all Pods: 80 (when deploying a 3 node APIC cluster)
-
Maximum number of Leaf nodes per Pod: 200 (when deploying a 5 nodes APIC cluster)
-
Maximum number of Spine nodes per Pod: 6
-
Maximum latency (RTT) between Pods : 50ms (was 10ms)
